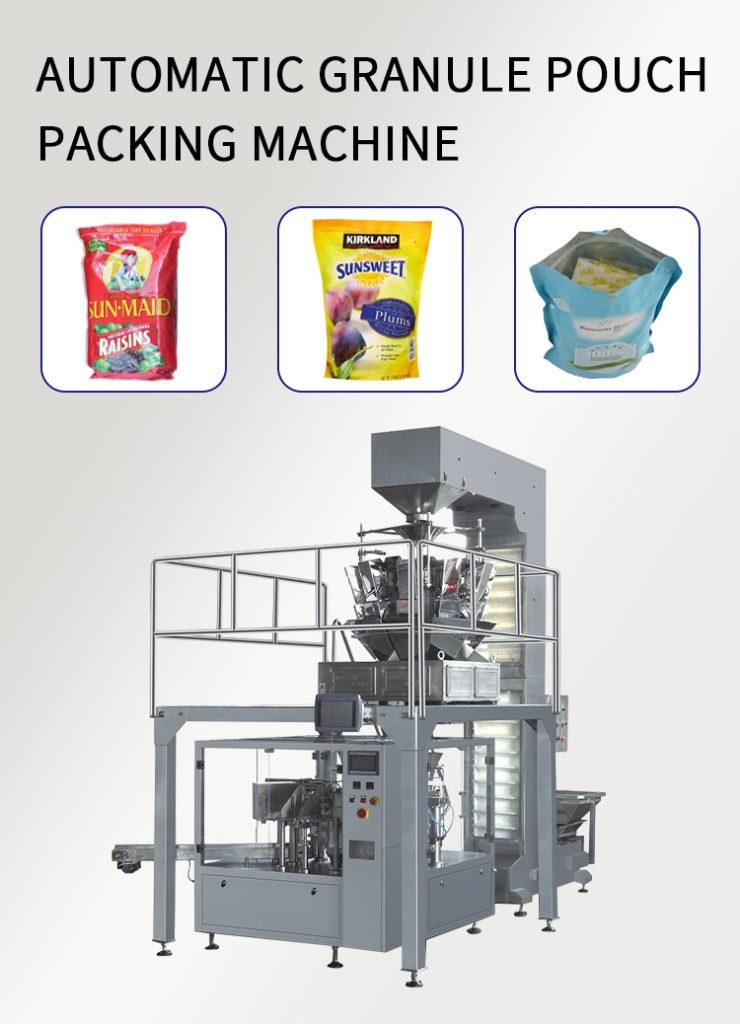

Doypack series packaging machine

作者hanyoo
分享Printerest 分享LinkedIn 分享WhatsApp

Applicable to various bag types: flat bag, self-reliant bag, zipper bag, ironing standing bag, punching standing bag, corner pinching standing bag, special-shaped bag, etc.

Play

Properties

MODELGD-8-200K GD-8-260K GD-8-320K GD-8-350K GD-8-400K
Packing Material3-side,four edge-sealing bag,self-reiance bag,handbag,spout bags,zipper bag.compound bag,etc
 PackagingGD-8-200K：Suitable for bag width W:80-220mm;H:≤380mmGD-8-260K：Suitable for bag width W:140-260mm;H:≤450mmGD-8-320K：Suitable for bag width W:180-320mm;H:≤450mmGD-8-350K：Suitable for bag width W:200-350mm;;H:≤450mmGD-8-400K：Suitable for bag width W:260-400mm/;H:≤550mm
Filling Range≤1KG
Fillingrange≤1000g≤2000g≤3000g≤3000g≤5000g
Design speed60-70bag/min≤50bag/min≤40bag/min≤40bag/min≤30bag/min
PackagingSpeed10-60bag/min(The speed is determined by the product itself and thefilling volume)
Measurement Average Accuracy±1
Total Power3.5KW
Work Flowgiving bag→coding-opening filling 1 →filling 2→auxiliary→exhaust 一heat sealing→.forming and output product
Dimensions1780×1420×1480mm(L×W×H)
   ApplicableScope1.Block material:bean curd cake,fish,eggs,candy,red jujube,cereal,chocolate, biscuit,peanut,etc
2.Granular type:crystal monosodium glutamate,granular drug,capsule,seeds,  chemicals,sugar,chicken essence,melon seeds,nut,pesticide,fertilizer
3.Powder type:milk powder,glucose,monosodium glutamate,seasoning,   washing powder,chemical materialsfine white sugar,pesticide,fertilizer,etc
4.Liquid/paste type:detergent,rice wine,soy sauce,rice vinegar,fruit juice,  beverage,tomato sauce,peanut butter,jam,chili sauce,bean paste
5.Class of pickles,pickled cabbage,kimchi,pickled cabbage,radish,etc
6.Other bagging materials

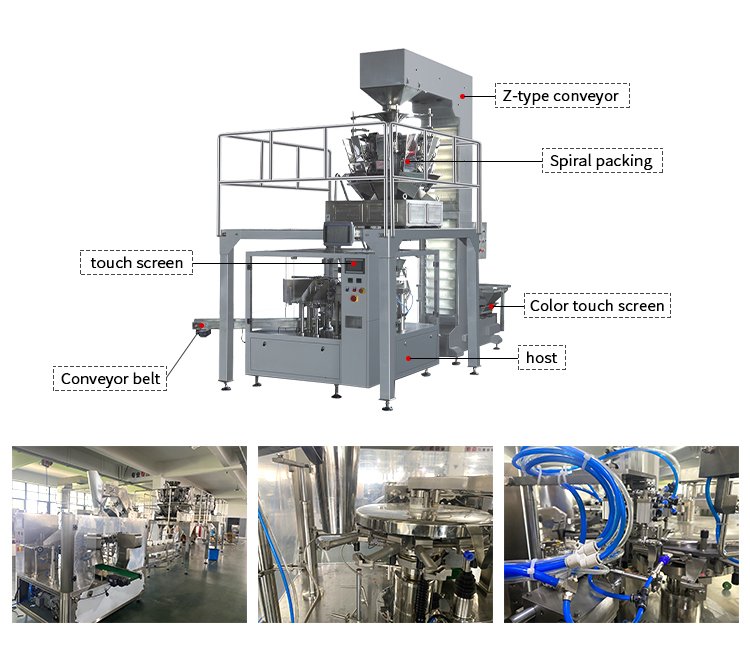

MainStandardParts1.Code printer 2.PLC control system 3.Bag opening device 4.Vibration device 5.Cylinder 6.Electromagnetic valve 7.Temperature controller8.Vacuum pump 9.Inverter 10.Output system

Machine Features

  • Rapid change of the specifications of the bag, bag width can be automatically adjusted by one button.
  • Single shaft and the CAM design: packing speed faster; more stable operation ; maintenance easier and reduce defective rate.
  • Modular heating, temperature control more accurate, heating fault have alarm prompt.

Production Workflow Chart

Sample Display

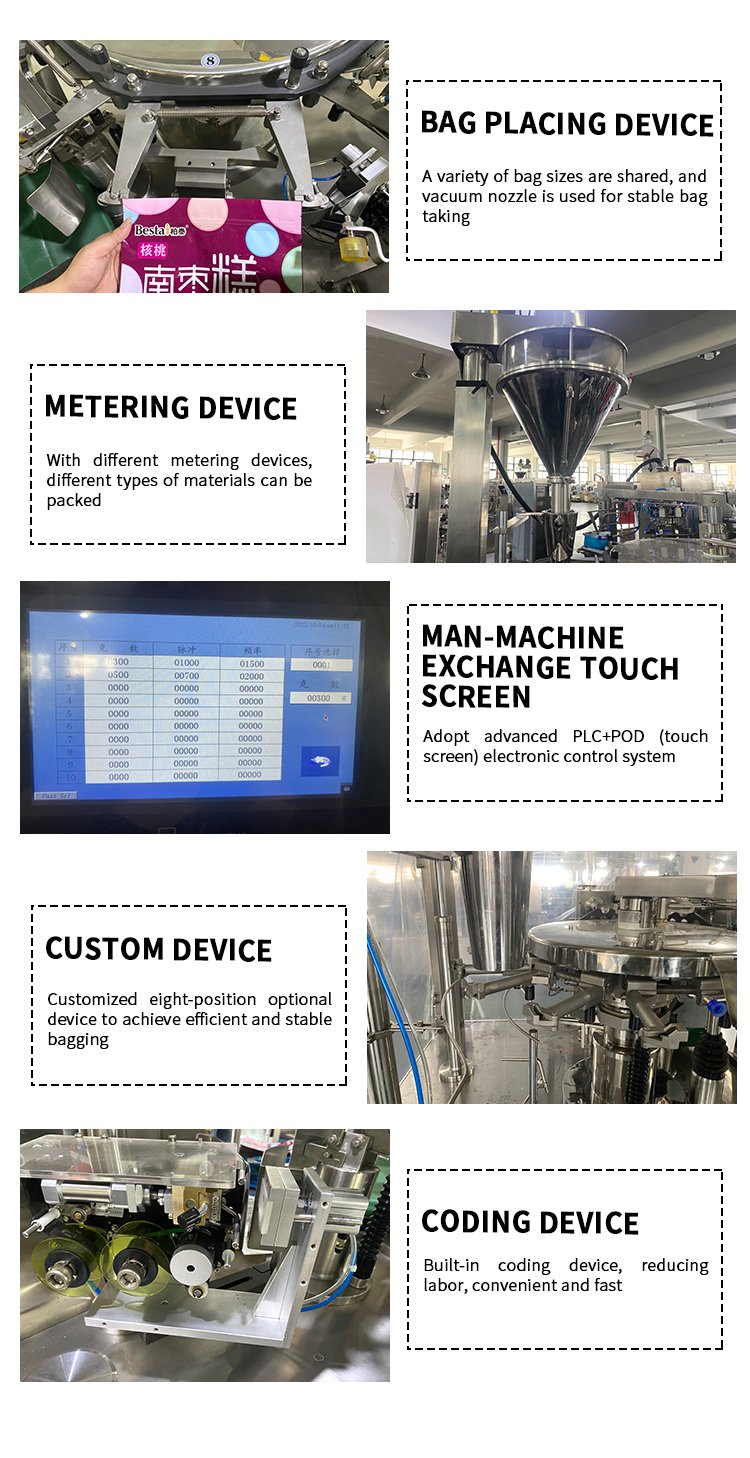

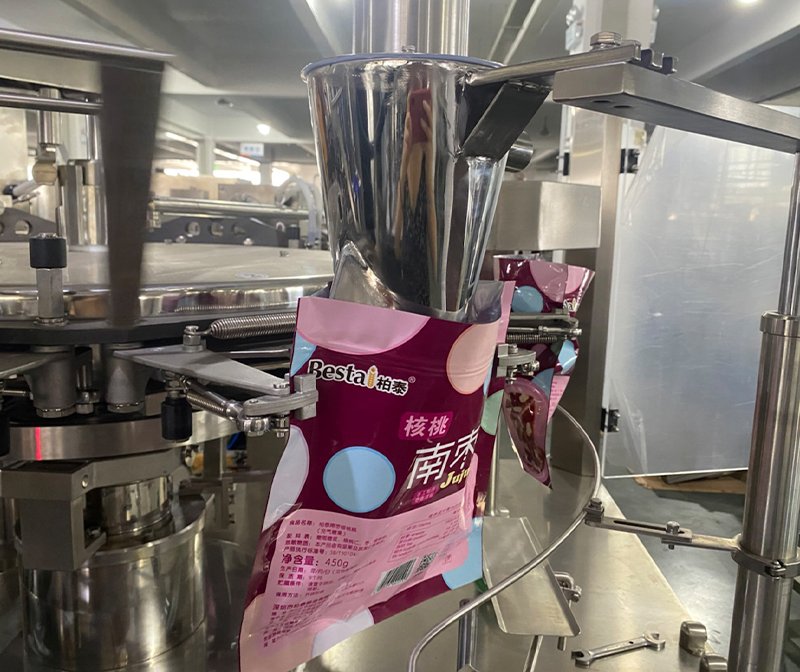

Detailed Display

Exhibition

Packaging And Shipping

Why Choose Us

Specialized Factory

Economical Pricing Options

On-Time Delivery

Perfect Customer Service

If you have any questions or need to develop customized equipment solutions, please contact our Email：info@hanyoo.net for the most thoughtful support!

Welcome To Our Sachet Packing Machine Line Factory!

Frequently Asked Questions

A doy bag, also known as a doypack or stand-up pouch, is a type of flexible packaging. It has become increasingly popular in recent years. It can stand straight on its own thanks to its gusseted sides and flat bottom. The French term “doyenné,” which means “to stand upright,” is where the name “doy” originates.

Packing machines ensure products are efficiently prepared for transport and storage, focusing on bulk packaging and protection during shipment. In contrast, packaging machines are designed to create consumer-ready products, ensuring they are attractive, functional, and protected from spoilage or contamination.

What is the lifespan of a typical pouch-packing machine? If a high-quality pouch-packing machine is maintained well, a lifespan of around 10 to 20 years can be expected.
