DPH Series High Speed Rotary Blister Packing Machine
The high-speed blister packaging machine is suitable for automatic blister packaging of regular medicines. such as capsule tablets and chewing gum, lozenges, chocolate beans and other confectionery. It adopts flat pressure forming, drum type mesh sealing, which is reliable in sealing. lt can print batch number and press easy tearing line.This machine is designed to pack without packaging material waste ,which is saving money.
Properties
| Model | DPH-260D | DPH-400D |
| Blanking | ALU PVC:40～200 times/min | ALU PVC:40～200 times/min |
| Max.Forming Area | 250×250mm | 380×200mm |
| Maximum Forming Depth | 12mm | 12mm |
| Adjustable Range of Travel | 150～250mm | 150～250mm |
| Standard Blister Size | 80×57mm | 80×57mm |
| PVC Width &Thickness | Thickness 0.15～0.30mmWidth 230~260mmRoll Dia.≤φ600 mm;Inner Roll Dia. φ72-76 mm | Thickness 0.15～0.30mmWidth 230~260mmRoll Dia.≤φ600 mm;Inner Roll Dia. φ72-76 mm |
| PTP Width &Thickness | Thickness 0.02～0.03mmWidth 230~260mmRoll Dia.≤φ260 mm;Inner Roll Dia. φ72-76 mm | Thickness 0.02～0.03mmWidth 230~260mmRoll Dia.≤φ260 mm;Inner Roll Dia. φ72-76 mm |
| Power | 380/220V 17.2KW | 380V 50HZ,main motor:2.2KW,heating:17KW |
| Air | ≥0.5m³/min | ≥0.5m³min |
| Water Cooling | 60L/h | 60L/h |
| Overall Size | 4350×1070×2200 mm | 4350×1386×2200 mm |
| Weight | 3000KG | 3500KG |
Production Workflow Chart
Sample Display

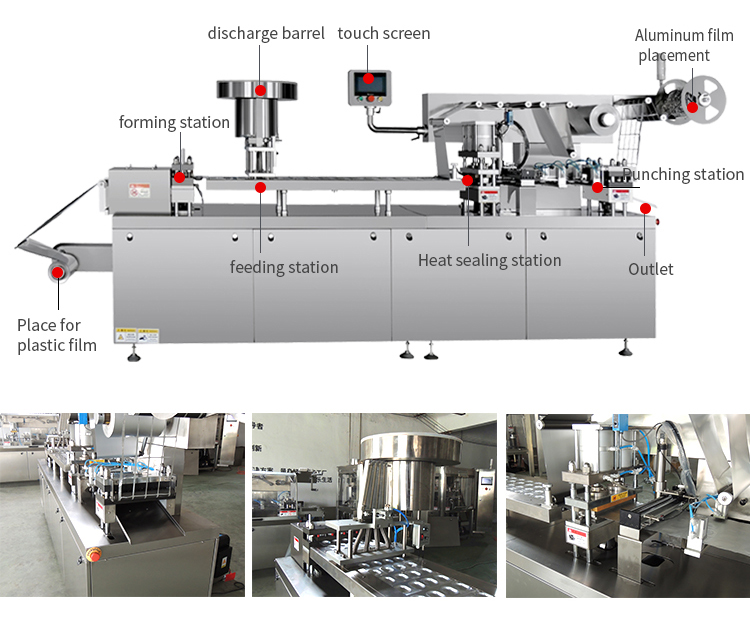

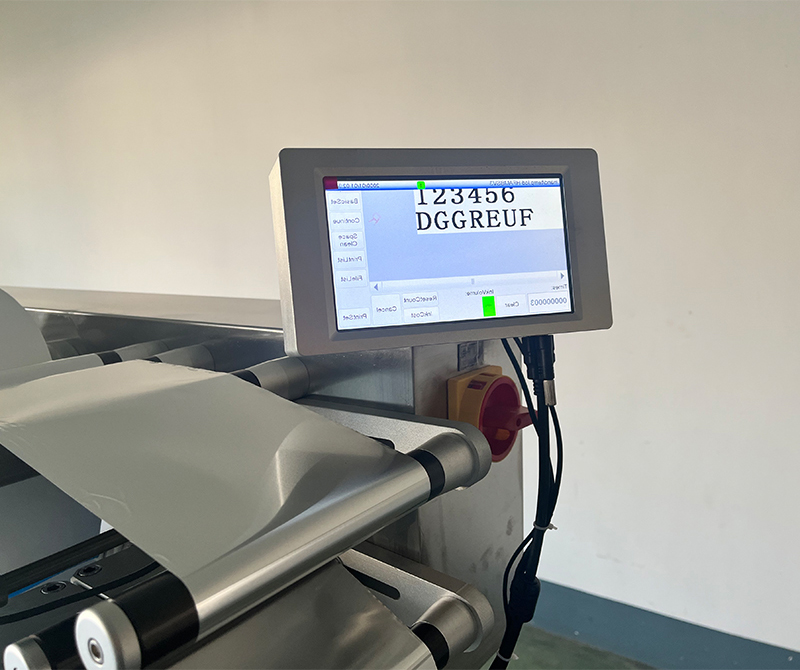

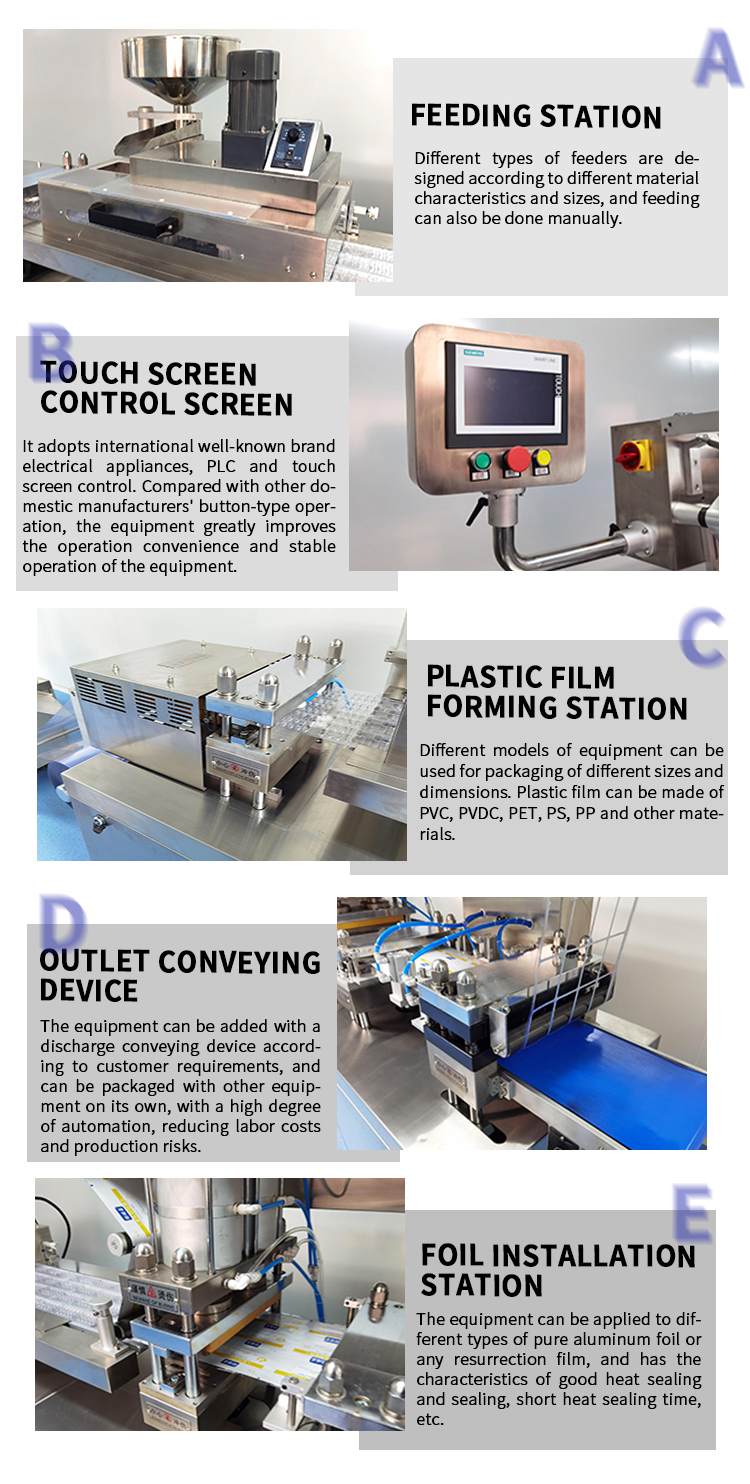

Detailed Display
Exhibition
Packaging And Shipping
