DPP-270/360Y Lquid Blister Packing Machine(Ceramic Pump Feeder)

作者hanyoo
分享Printerest 分享LinkedIn 分享WhatsApp

The equipment can be equipped with different types of pumps and filling different kind of fluid products, and the feeder is linked with the equipment to automatically feed. For some special materials, can be equipped with waming and stirring device. It can do automatic batching number, pressing tear line and other functions. Forming plastics can be selected from PET. PP, PS. PVC and other materials.

Play

Properties

ModelDPP-270YDPP-360Y
Cutting Frequency(times/min)10-3010-30
Output Capacity(pcs/h)1000-50003000-8000
Travel(mm)30-130(150)30-150(180)
Max.Blister Size270*130(150)*30(40)mm360*150(180)*30(50)mm
Air Consumption≥0.38m³/min≥0.42m³/min
Voltage380V50HZ/220V60HZ380V50HZ/220V 60HZ
Plastic Film(mm)280*(0.15-0.5)360*(0.15-0.5)
Aluminum Foil(mm)280*(0.02-0.035)360*(0.02-0.035)
Over Size(mm)3900*740*17004560*740*1700
Weight(kg)17001700

Production Workflow Chart

Sample Display

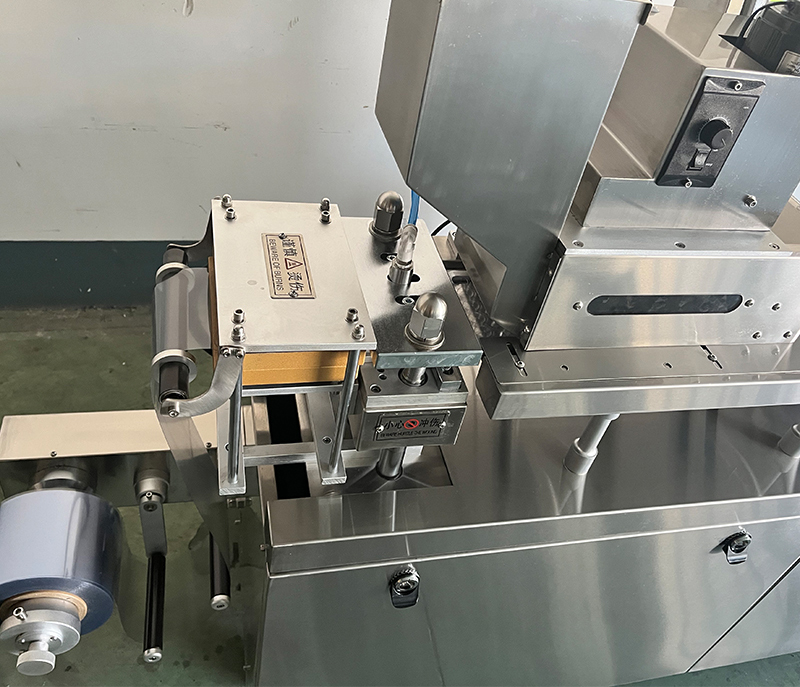

Detailed Display

Exhibition

Packaging And Shipping

Why Choose Us

Specialized Factory

Economical Pricing Options

On-Time Delivery

Perfect Customer Service

If you have any questions or need to develop customized equipment solutions, please contact our Email：info@hanyoo.net for the most thoughtful support!
