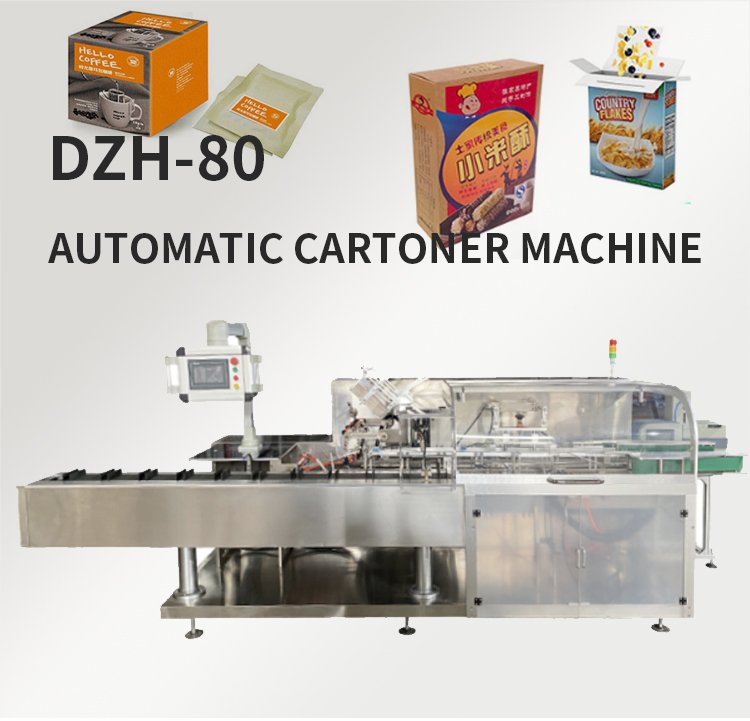

DZH-80 Fully Automatic Cartoning Machine

The DZH-80 horizontal automatic boxing machine is a high-tech product that integrates mechatronics, gas, and light. Suitable for automatic packaging of drugs, food, daily chemicals, hardware, medical devices, and other items. The manual can be automatically folded with a 1 to 4 fold fold; The paper box is automatically formed and transported, and the packaging materials and folded instructions are simultaneously loaded into the paper box; And automatically complete complex packaging processes such as batch number printing and paper tongue sealing at both ends. This machine can be connected to blister packaging machines and labeling machines to form a packaging assembly line (Hot melting glue sealing is optional).

Properties

MODELDZH-80
Packing Speed30-60 box/min
CartonQuality Requirement300-350g/m2
Size Range(L x W x H)L90-330mm,W50-210mm,H20-80mm
LeafletQuality Requirement60-80g/m2
Open Size Range(L x W)90-300mm;90-200mm
Folded Size Range( L x W)90-200mm;20-40mm
Compressed AirWorking Pressure0.5-0.7mpa
Air Consumption120-160L/min
Power Source380/220V  50HZ
Main motor power1.5kw
Dimension (L x W x H)4150×1350×1800mm
WeightAbout 2000kg

Machine Features

  • PLC automatic control, variable frequency speed regulation, internationally renowned electrical components are used.
  • Automatically displays faults, box packing speed, and finished product count.
  • Automatically detects missing packaging or rejects for medicine boards (products) and instructions.

Production Workflow Chart

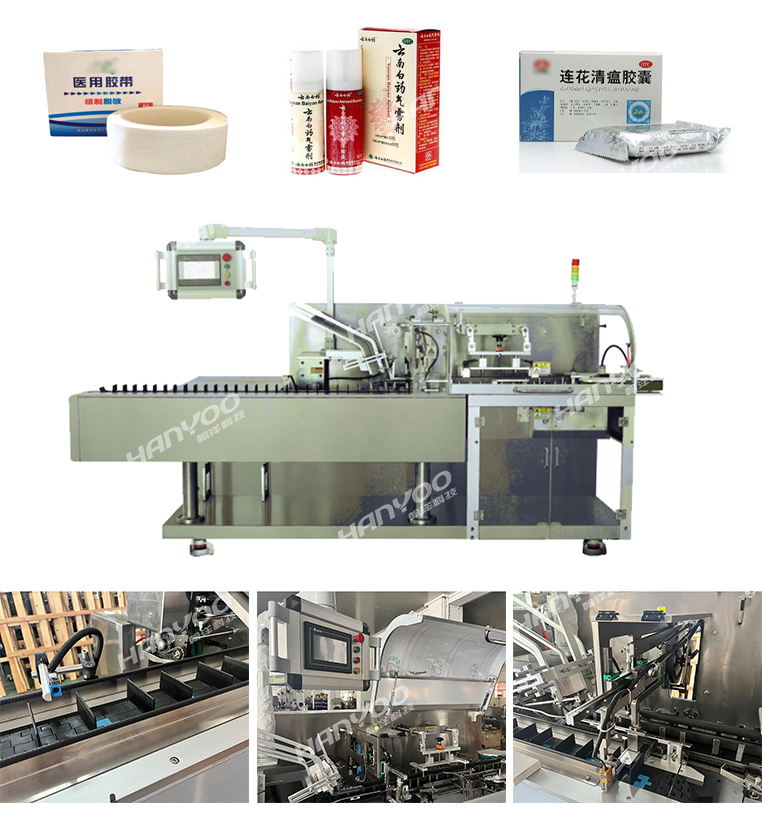

Sample Display

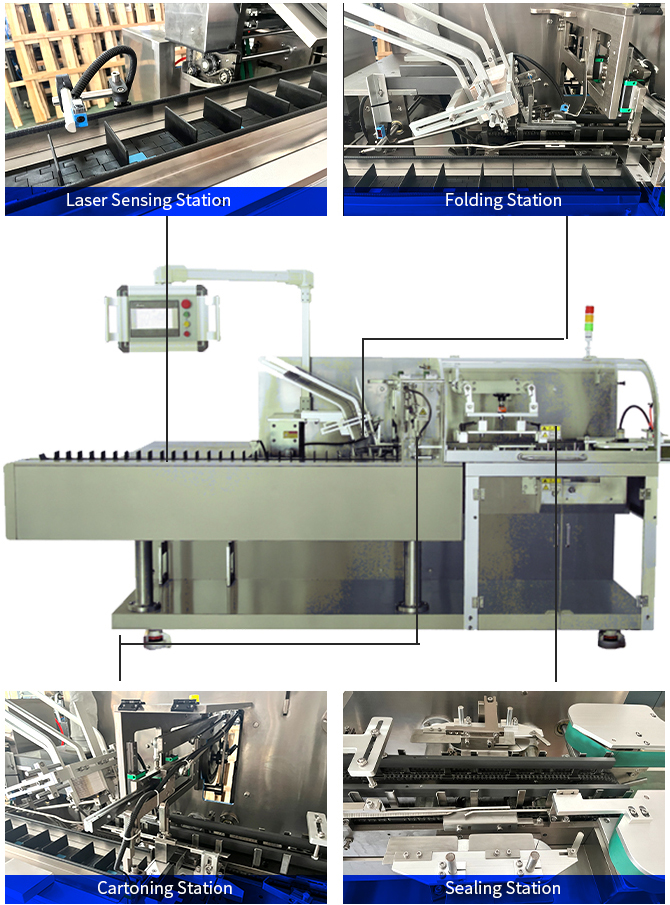

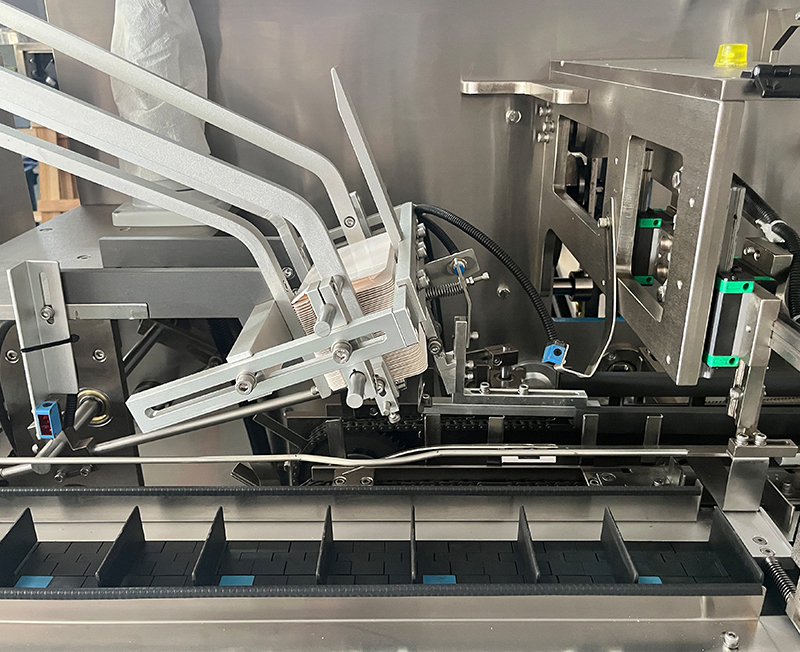

Detailed Display

Exhibition

Packaging And Shipping

Why Choose Us

Specialized Factory

Economical Pricing Options

On-Time Delivery

Perfect Customer Service

If you have any questions or need to develop customized equipment solutions, please contact our Email:info@hanyoo.net for the most thoughtful support!

Welcome To Our Cartoning Machine Line Factory!

Frequently Asked Questions

A packaging machine can make anywhere from 20 to over 200 bags per minute, but the specific speed depends on the machine type and the product being packaged. For example, slower machines might produce 20-30 bags per minute, while high-speed rotary or vertical form fill seal (VFFS) machines can reach 100 or even 200+ bags per minute.

Cartoning Machines. Box, Case and Tray Forming, Packing, Unpacking, Closing and Sealing Machines. Cleaning, Sterilizing, Cooling and Drying Machines. Conveyors, Accumulating and Related Machines.

The four functions of packaging are containment, protection, convenience, and communication. Containment keeps products together, protection preserves the product from damage and spoilage, convenience makes the product easier to handle and use, and communication provides information and promotes the brand.
