FL Series Fluid Bed Granulator (One-step Granulating)

作者hanyoo
分享Printerest 分享LinkedIn 分享WhatsApp

The multifunctional fluidized bed is a new type of pharmaceutical equipment developed from fluidized (boiling) drying technology. Integrating functions such as granulation and drying, it is widely used in the pharmaceutical industry. The multifunctional fluidized bed drying granulator mainly consists of a main unit, an air handling system, a spray system, a main air duct system, an exhaust system, and an electrical control cabinet.

Play

Properties

ModelFL-10FL-20FL-30FL-60FL-120FL-200
Volume(L)3573112220566739
Capacity(KG)15203060120200
 SteamPressure(Mpa) 0.4-0.6
Consumption(KG/H)80116116240380420
CompressedairPressure(Mpa)0.4-0.7
Consumption(KG/H)0.60.90.90.90.91.5
Fan Powder(KW)7.5111118.52230

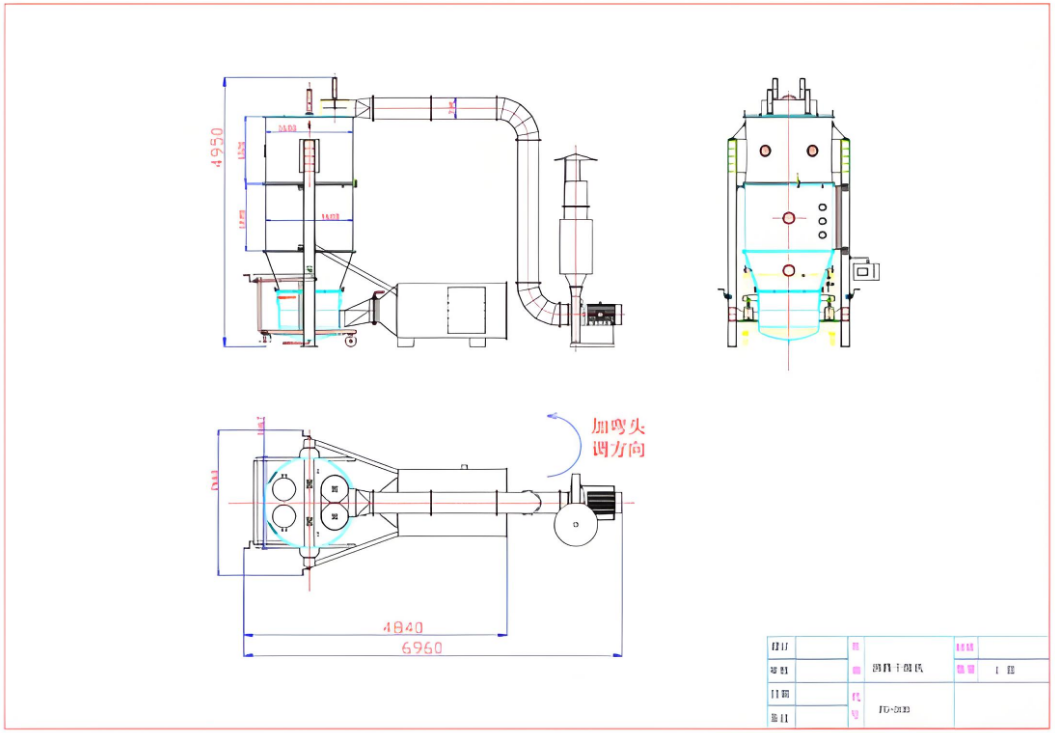

 Overall Size(MM)W120014801480166018902090
H376040004000442045405100
H1327036003690369042304315
Φ80010001000120014001600

Machine Features

  • When it works, the materials are fed into the silo of the fluid bed granulator, and after the programs and parameters are set according to the process requirements, the machine starts to work.

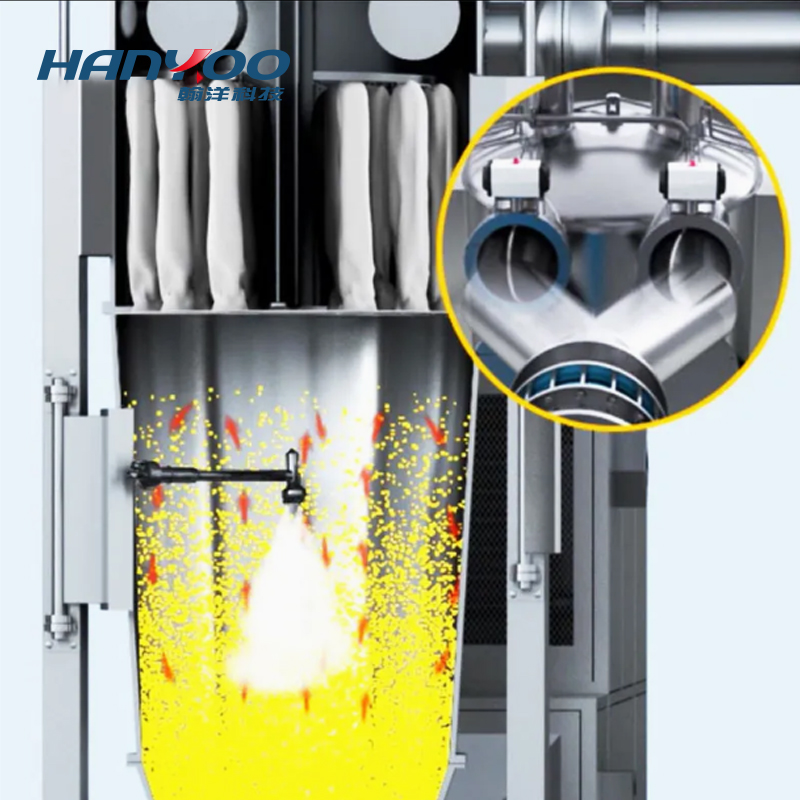

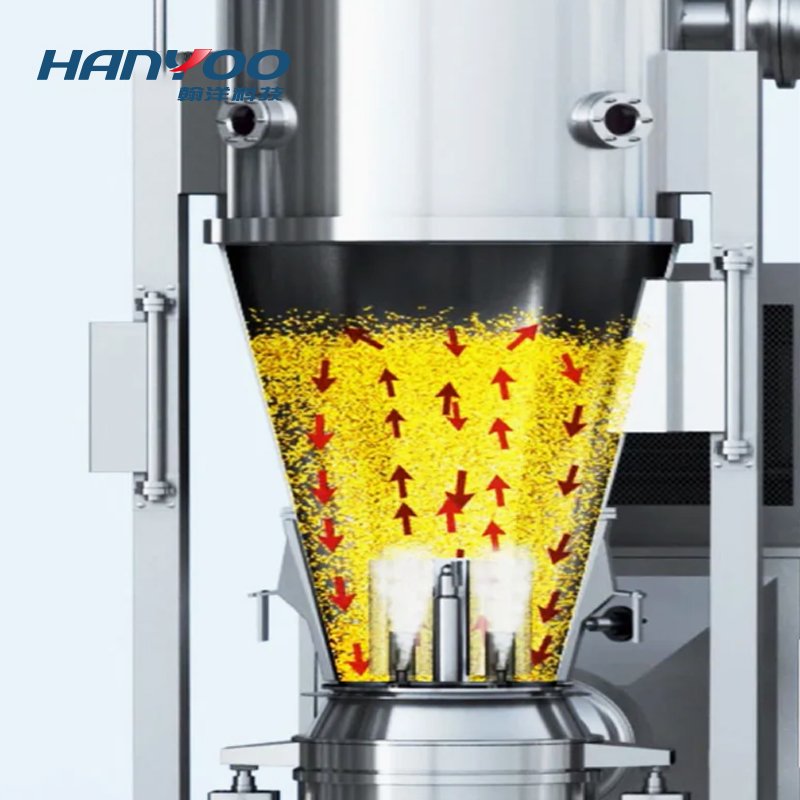

  • After filtered by the air handling system and heated by the heating system, the air enters the main machine. After going through the slurry handling system, the slurry is sent to the spray gun and sprayed to the materials inside the cavity, and then is bonded with powder to form granules.

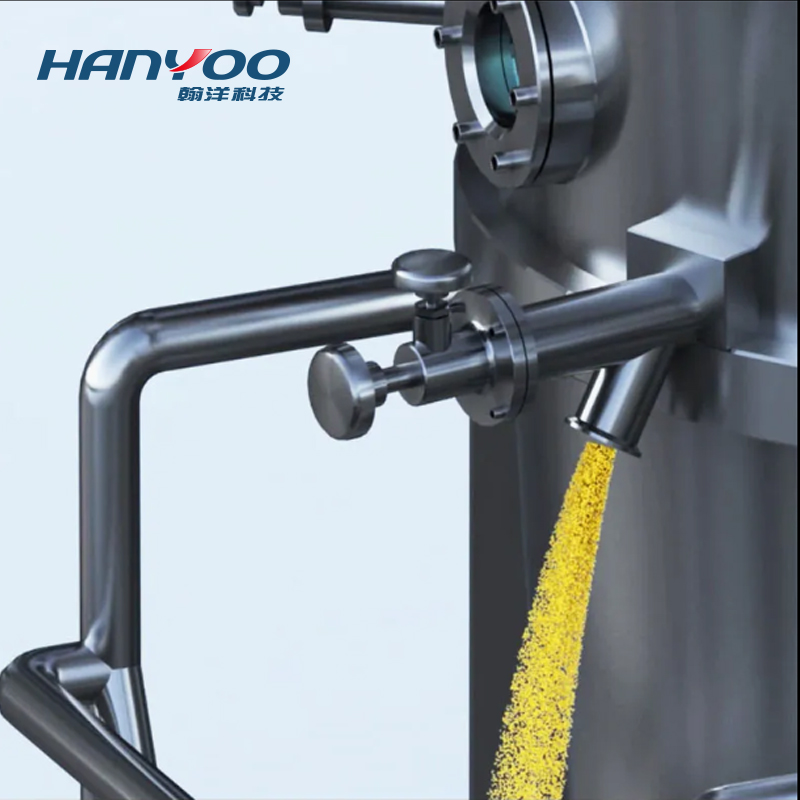

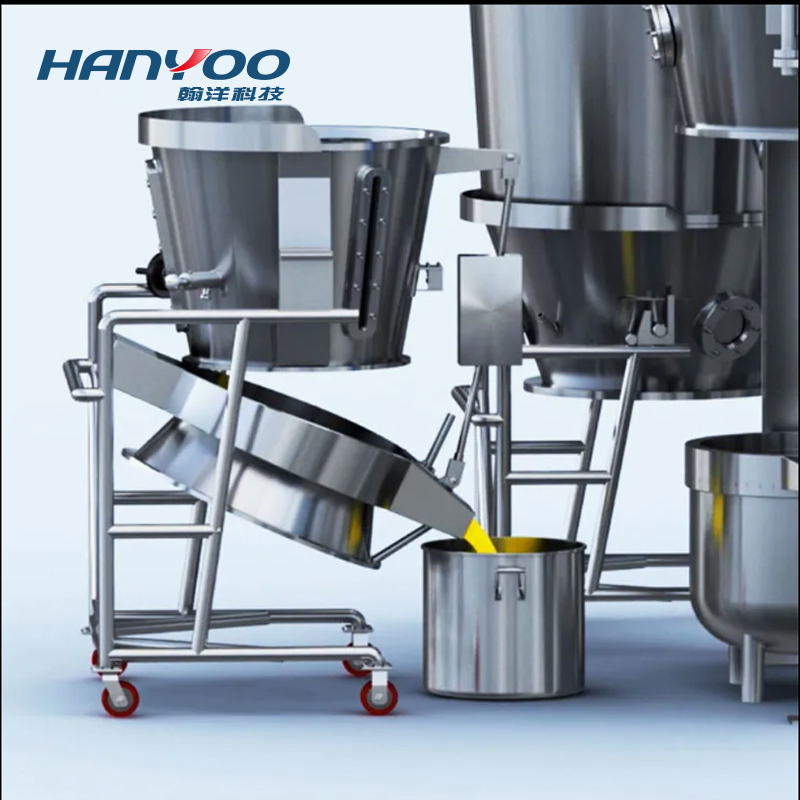

  • After the operation is completed according to the set programs and parameters, the silo is pushed out and connected with the lifting material transferring machine for lifting discharging or the vacuum feeder is used to pump the materials to a high position for granule sizing by the granule sizing machine, so as to effectively control dust pollution and cross contamination.

Production Workflow Chart

Sample Display

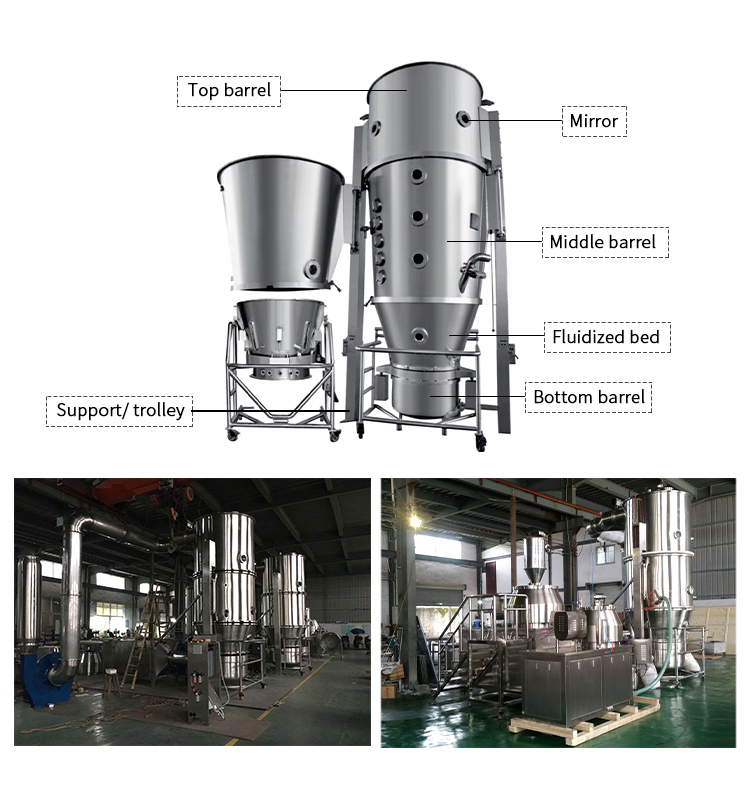

Detailed Display

Exhibition

Packaging And Shipping

Why Choose Us

Specialized Factory

Economical Pricing Options

On-Time Delivery

Perfect Customer Service

If you have any questions or need to develop customized equipment solutions, please contact our Email：info@hanyoo.net for the most thoughtful support!
