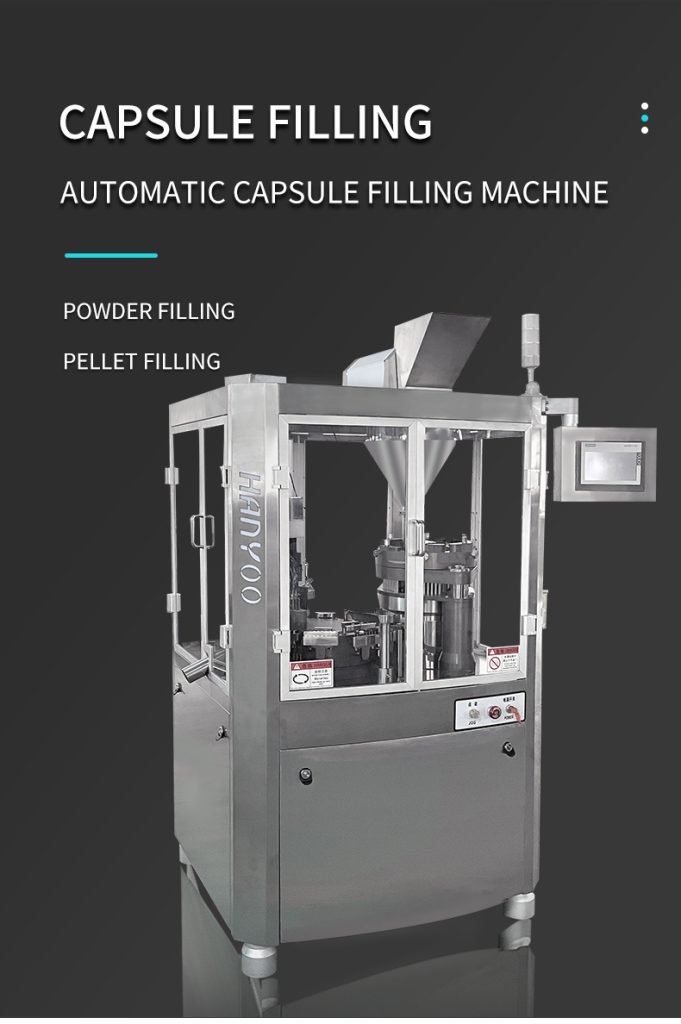

GL-6/9 New Fully Automatic Capsule Filling Machine

Byhanyoo
Share on Pinterest Share on LinkedIn Share on WhatsApp

GL series automatic capsule filling machine is a new product specially improved by our company according to the market experience. The whole machine adopts arc design, the equipment flow line is smooth and the appearance is atmospheric.

Play

Properties

ModelGL-6GL-9
Max.Output(pcs/h)48,00072,000
No.Of Bore69
Powder(KW)45
Capsule Size#000-#5
VoltageCustomized
Weight(KG)11501150
Dimmension1090*1070*18601090*1070*1860

Machine Features

  • The equipment adopts PLC programming, man-machine interface operation, touch screen display. Automatic alarm display for running faults or lack of materials, automatic shutdown, and automatic elimination of alarms after troubleshooting. The machine also has the functions of password input, parameter setting, data printing, zero clearing and so on.
  • All the main key parts of the machine such as transmission shaft, CAM, bearing are imported materials, reliable quality, is the first choice for filling capsule drugs ideal equipment, and fully comply with GMP requirements.
  • The equipment adopts mold brush cleaning and dust suction device to improvetheprobability of capsule loading, and the probability of capsule loading can reach99.99%.

Production Workflow Chart

Sample Display

Detailed Display

Exhibition

Packaging And Shipping

Why Choose Us

Specialized Factory

Economical Pricing Options

On-Time Delivery

Perfect Customer Service

If you have any questions or need to develop customized equipment solutions, please contact our Email：xinghongming@hanyoopm.com for the most thoughtful support!

Welcome To Our Capsule Filling Machine Line Factory!

Frequently Asked Questions

In a manual operated capsule filler, the cap and body of the capsule are detached and inserted into the loading tray while checking the front knob. The empty capsules get poured along with the filling materials and sealed off. The locking lever is then pulled forward.

Break open the empty capsules, put the small side in the fill tray , dump the powder over the capsules, fill, sift to settle, fill and even out the powder with the scraper or a card, then smash the cap side tray over the fill tray with the now-full capsule halves.

Less Dosage Flexibility. Capsules are typically pre-dosed and cannot be easily divided into smaller portions. Cost: Capsules are often more expensive to manufacture than tablets, which can make them pricier for consumers.
