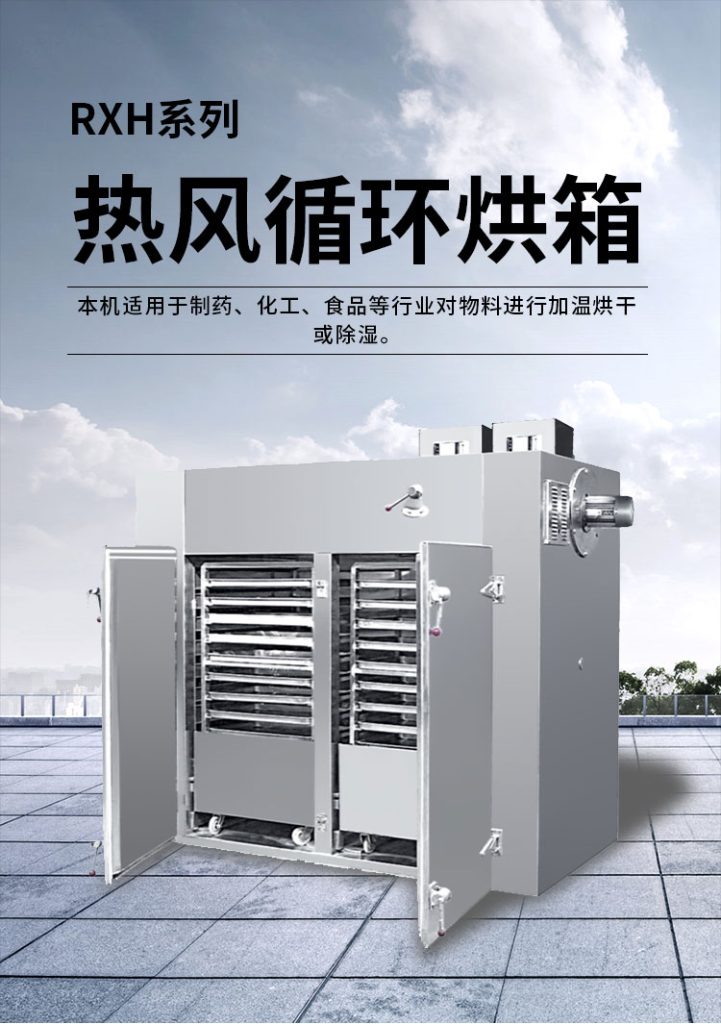

Hot Air Circulation Oven

作者hanyoo
分享Printerest 分享LinkedIn 分享WhatsApp

Our hot air circulation ovens are designed for precise and uniform drying, baking, and curing applications. With a circulating air system, our ovens ensure even heat distribution and consistent results. Explore our range of hot air circulation ovens to meet your heating and drying needs in pharmaceutical, food, and industrial processes.

Play

Properties

ModelRXH-12RXH-24RXH-48RXH-96
Drying volume each time(kg)2550100200
Electric heating power(kw)991530
Fan power(kw)0.450.450.450.9
Fan  volume(m³/h)4510451045109020
Steam consumption(kg/h)15152040
Temperature difference inside theoven(℃)±2±2±2±2
Plate quantity12244896
Machine size(mm)L*W*H1500*1000*79001380*1200*20002260*1200*20002260*2200*2000
Net weight(kg)70082015801800

Machine Features

  • The machine is widely used for heated drying or dehumidifying of materials in such industries as medicine,food and chemical industry.
  • Its workina principle is that it uses steam or electric heater to heat the air, and then the heated air carries out circulated drying of materials. The temperature difference between any places in the oven is low and the drying is even.
  • During the drying process, fresh air is supplied and wet and hot air is discharged continuously, so proper temperature is maintained inside the oven, making the drying process always under the best status.

Production Workflow Chart

Sample Display

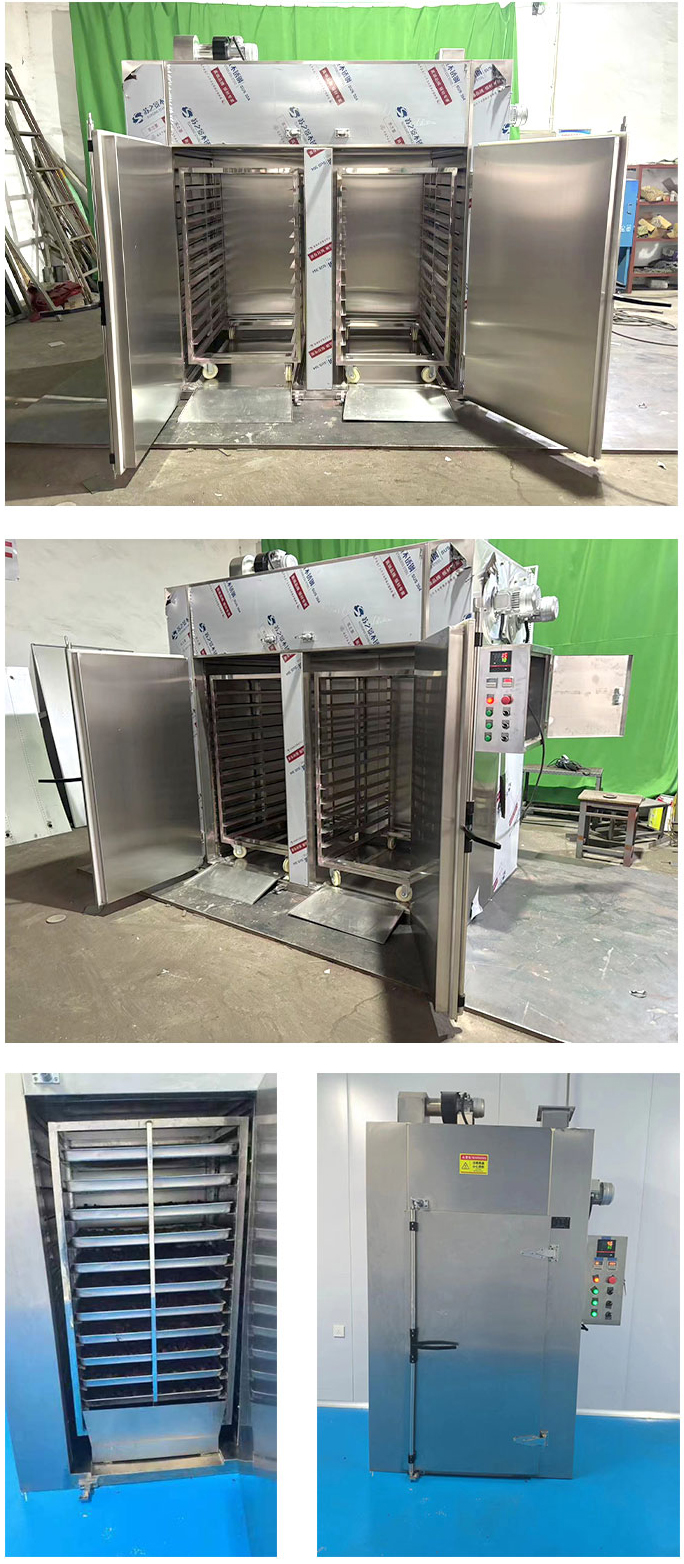

Detailed Display

Exhibition

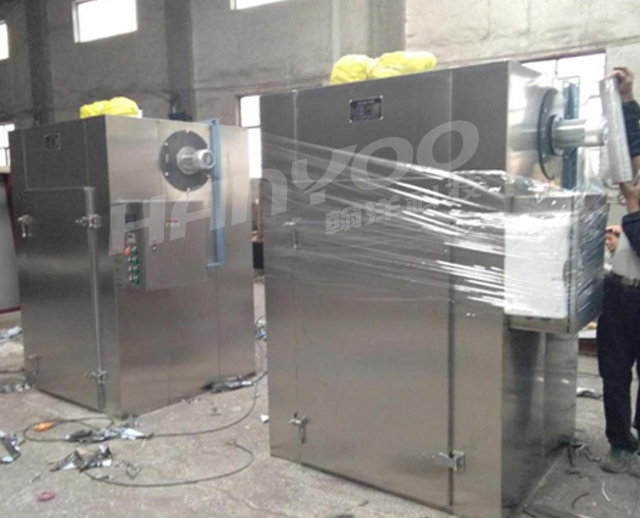

Packaging And Shipping

Why Choose Us

Specialized Factory

Economical Pricing Options

On-Time Delivery

Perfect Customer Service

If you have any questions or need to develop customized equipment solutions, please contact our Email：info@hanyoo.net for the most thoughtful support!

Welcome To Our Hot Air Circulation Oven Production Line Factory!

Frequently Asked Questions

An industrial dryer is a device designed to remove moisture from the air or materials used in production processes. It works by reducing the water vapour and ensuring that materials are dry and ready to be processed, avoiding moisture negatively impact the process or the final product.

Industrial dryers are used to efficiently process large quantities of bulk materials that need reduced moisture levels. Depending on the amount and the makeup of material needing to be dried, industrial dryers come in many different models constructed specifically for the type and quantity of material to be processed.

Three basic methods of drying are used today 1) sun drying, a traditional method in which materials dry naturally in the sun, 2) hot air drying in which matrials are exposed to a blast of hot air and 3) freeze drying, in which frozen materials are placed in a vacuum chamber to draw out the water.
