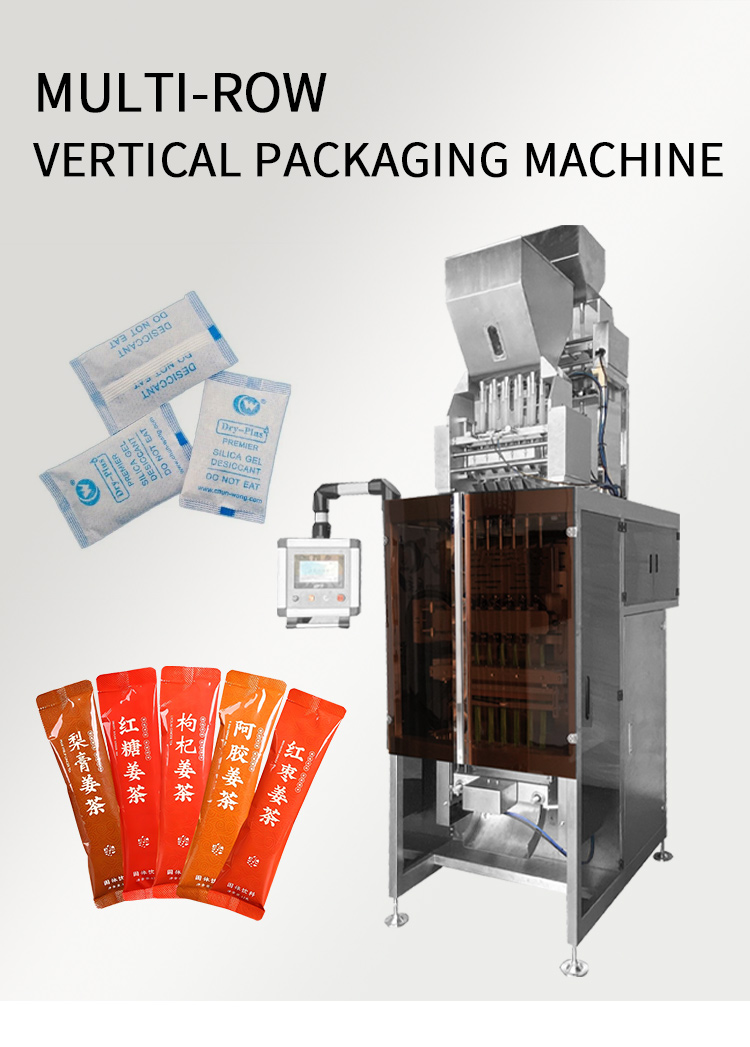

Multi-lane vertical series packaging machine

作者hanyoo
分享Printerest 分享LinkedIn 分享WhatsApp

Fully automatic soft packaging for liquids, pastes, and sauces in products across industries such as food, daily chemicals, health supplements, cosmetics, biotechnology, and pharmaceuticals. Examples include: mouthwash, oral liquid, creams, herbal pastes, honey, cosmetics, sauces, oils, juice beverages, medicinal liquids, aqueous pastes, etc. The machine can automatically complete the processes of feeding, measuring, dispensing, bag forming, filling, sealing, cutting, date coding (optional), and easy-tear notch creation.

Play

Properties

ModelDL-500Y
Number of packing rowsFour-Lane
Measuring methodMagnetic pump
Packaging speed120 bags/min
Bag sizeL: 50-160mm (adjustable) W: 55mm (fixed value)
Film width rangeMax. 500mm
Film thickness0.05-0.1mm
Power supply1N+PE/50HZ/AC220V/5.2KW
Dimensions (mm)L×W×H (1300×1540×1750) (Total height including trough 2350mm)
Weight450kg

Machine Features

  • Automatically brakes according to the speed of the equipment during film drawing and bag making, making the equipment film drawing more stable.
  • Material is measured by magnetic pump, whichis fast and accurate, and the weight canbeadjusted with one click on the touchscreen.
  • Fine processing, beautiful bag making, good sealing. The sealing roller surface is coated with Teflon, which is wear-resistant, anti-fouling and easier to clean.

Production Workflow Chart

Sample Display

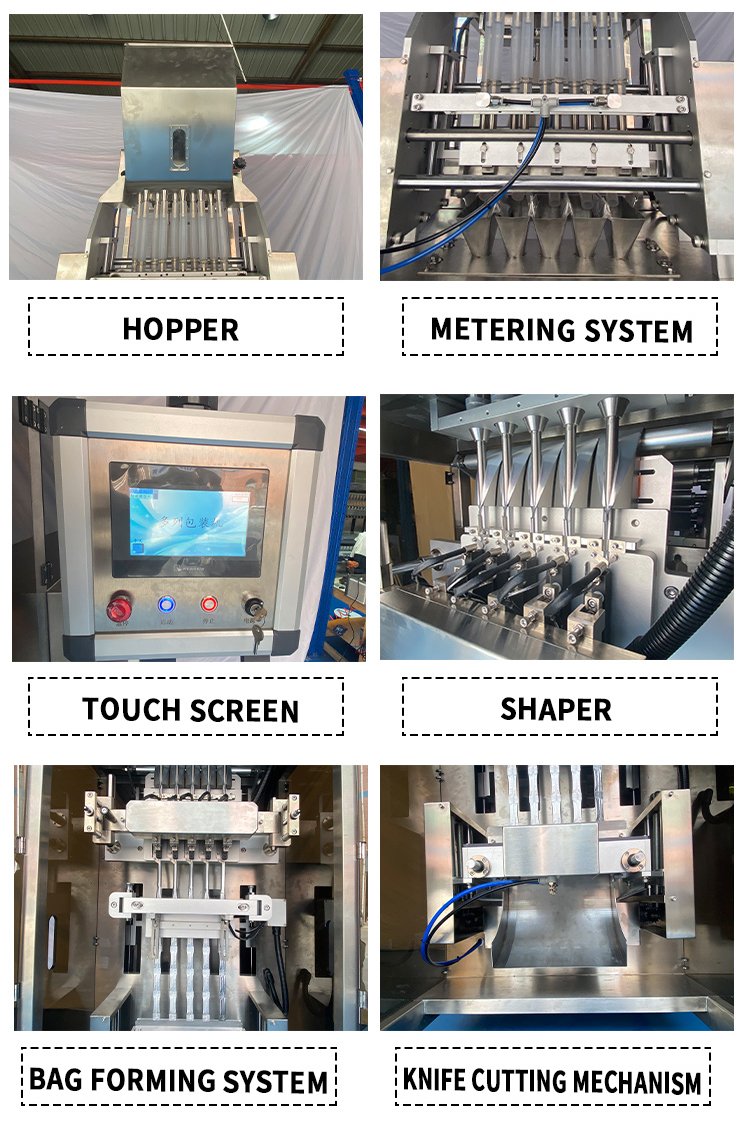

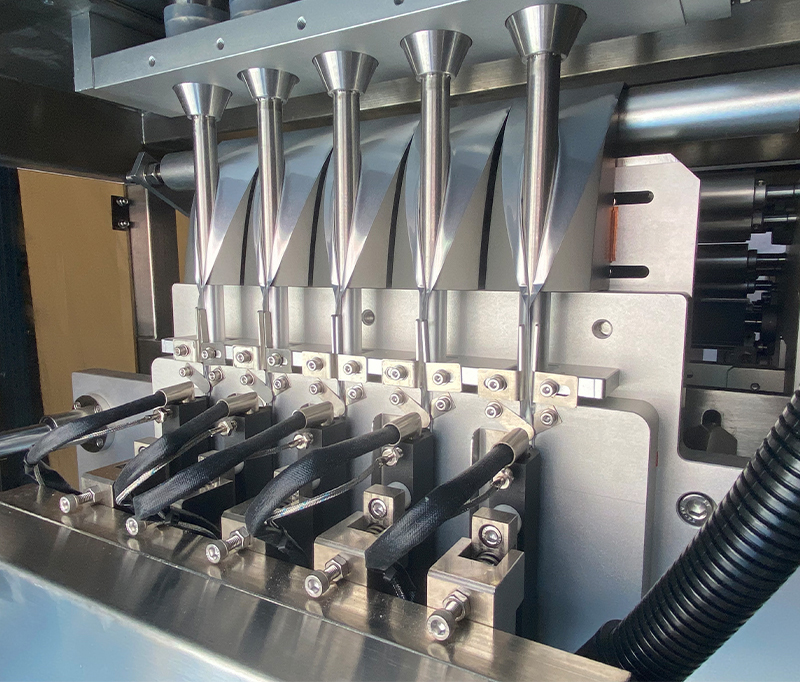

Detailed Display

Exhibition

Packaging And Shipping

Why Choose Us

Specialized Factory

Economical Pricing Options

On-Time Delivery

Perfect Customer Service

If you have any questions or need to develop customized equipment solutions, please contact our Email：info@hanyoo.net for the most thoughtful support!

Welcome To Our Sachet Packing Machine Line Factory!

Frequently Asked Questions

Whatever the case, the term is now widespread, and the ditty bag is still used for recruits to store their essential items, such as a sewing kit and toiletries. Of course, this inspired the backpacking ditty bag of today: a small pouch used to keep smaller items together in a larger bag for travel.

As their names indicate, the main difference between the two machines is their physical orientation. HFFS machines, also known as horizontal flow wrap machines (or simply flow wrappers), wrap and seal goods horizontally. By contrast, VFFS machines, also known as vertical baggers, package items vertically.

CSA and UL certifications are crucial for packaging machinery because they ensure that the equipment meets safety standards set by regulatory bodies.
