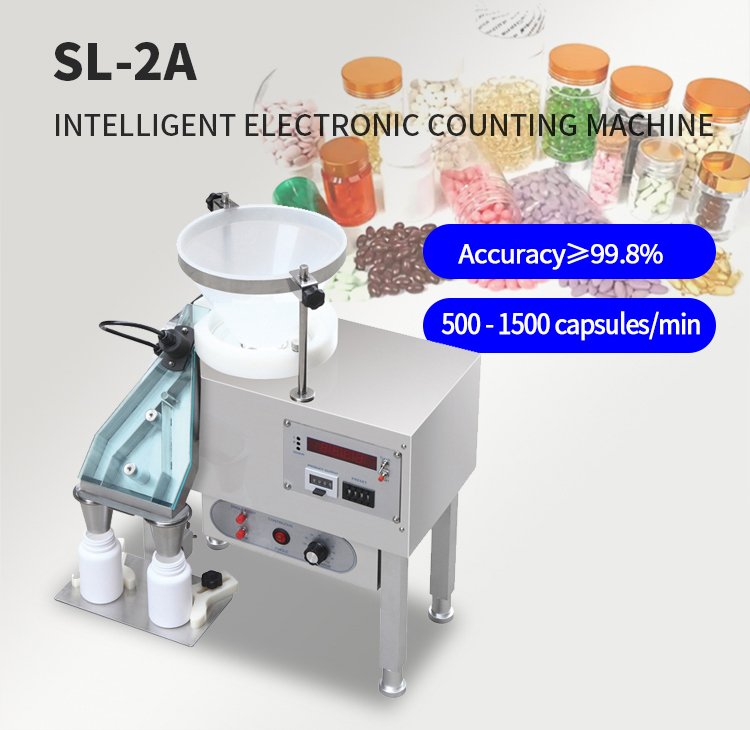

SL-2A Semi Automatic Counting Machine

作者hanyoo
分享Printerest 分享LinkedIn 分享WhatsApp

This machine adopts anti high dust photoelectric counting technology, which can count and package solid particles with a size range of 5-12mm. Can be bottled, boxed, and bagged, fully compliant with GMP requirements, especially suitable for research institutions, hospitals, newly established small pharmaceutical factories, and health product factories.

Play

Properties

ModelSL-2A
Dimension44x37x58cm
Voltage110-220V 50HZ-60HZ
Weight20kg
Power30W
Output500-1500
Package Size52×44×64cm
Gross weight30kg

Machine Features

  • High accuracy: The electronic counting machine adopts a proprietary system developed independently for many years, and is equipped with OMRON intelligent fiber optic sensors imported from Japan combined with PLC touch screen control. It has precise counting and strong anti-interference ability.
  • Good body material: The body material is made of stainless steel, which is resistant to pollution and corrosion, and easy to maintain. The contact parts are made of stainless steel material not lower than SUS304, and the structure adopts a “flexible structure”. Components that need to be cleaned in daily life can be removed by hand without tools, which is extremely convenient for cleaning and avoids contamination caused by long-term retention of material powder on the contact surface.
  • Convenient to use: The machine is equipped with a locator at the discharge port, which can limit the container to the correct discharge position. The loading container tray is a lifting structure, and the height of the container tray can be adjusted according to the height specifications of the bottle.
  • Visual information interaction: Adopting a touch screen human-computer interaction interface with a minimalist style, the information transmission is clear and easy to set and operate.
  • Strong applicability: This machine can be used for capsules, soft capsules, tablets (including irregular shaped tablets), pills, candies, and grain seed products without the need for mold development.

Production Workflow Chart

Sample Display

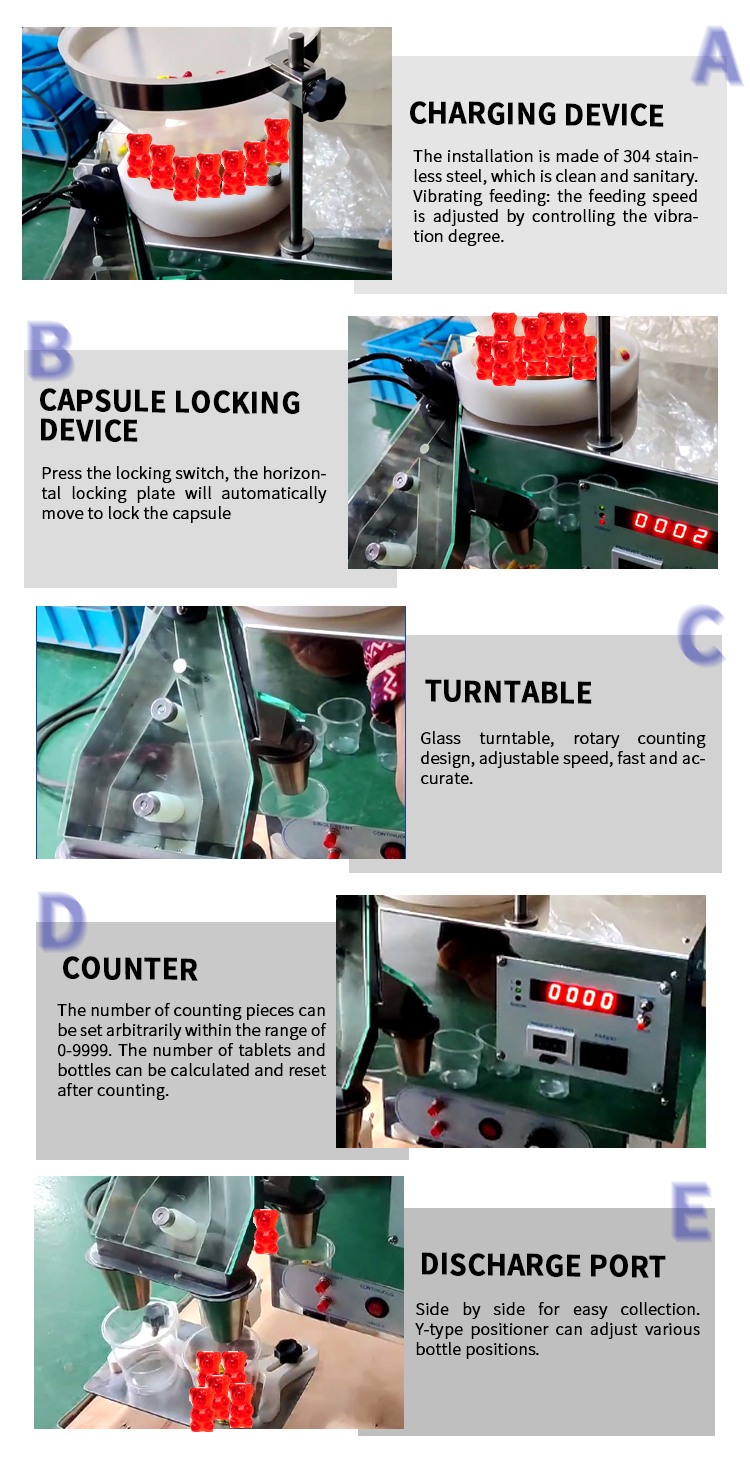

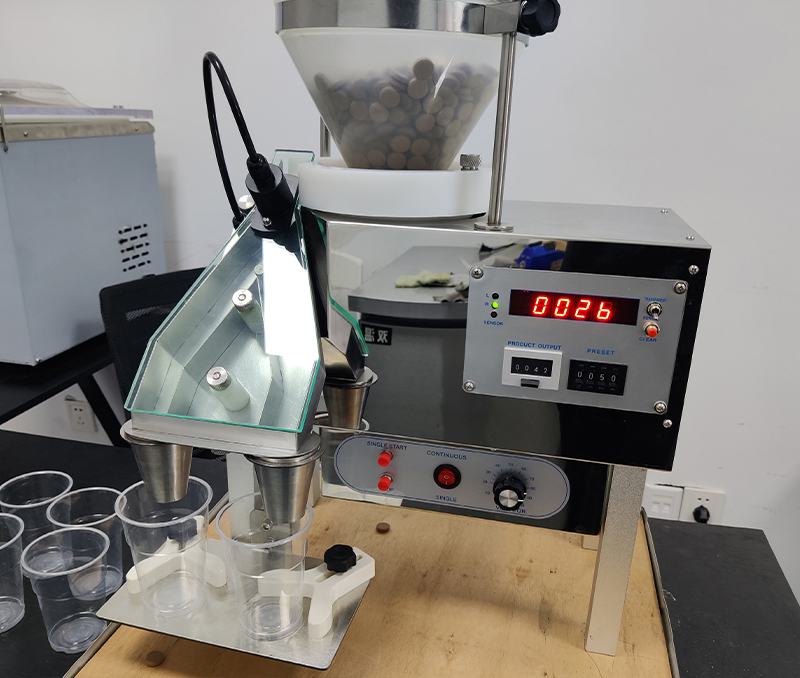

Detailed Display

Exhibition

Packaging And Shipping

Why Choose Us

Specialized Factory

Economical Pricing Options

On-Time Delivery

Perfect Customer Service

If you have any questions or need to develop customized equipment solutions, please contact our Email：info@hanyoo.net for the most thoughtful support!

Welcome To Our Capsule/Tablet Counting Line Factory!

Frequently Asked Questions

The medication bottle or strips dispensed during the previous visit are brought by the patient. The number of pills taken is calculated by subtracting the count of the number of pills remaining from the total number of pills dispensed.

The 20 mg pills are scored and can be safely split in half. If you buy the 20 mg tablets, cut them in half, and then take one-half (10 mg) for each dose, you can double your buying power.

Yes, pharmacists, particularly those in compounding pharmacies, still use mortars and pestles to grind and mix medications.
