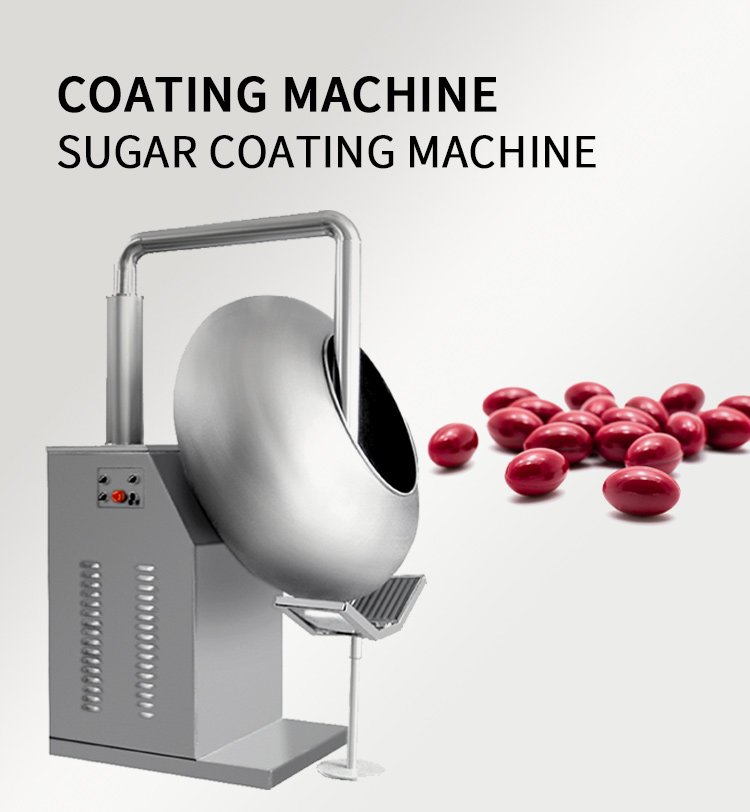

Sugar Coating Machine

作者hanyoo
分享Printerest 分享LinkedIn 分享WhatsApp

This machine is mainly used in the pharmaceutical industry for producing sugar coatings on pills and tablets. It can also be used in the food, light industry, and chemical industries for rolling, mixing, and polishing spherical or granular materials. Examples include: chocolate polishing, peanut coating, sugar coating, seasoning, making tangyuan (glutinous rice balls), tapioca pearls, rolling desiccants, producing chemical fillers, aluminum hydroxide balls, alumina balls, ceramic molecular sieve balls, ceramsite, catalysts, and more.

Play

Properties

ModelBY-200BY-400BY-600BY-800BY-1000
Sugar coatingpotdiameter(mm) 200 400 600 800 1000
Sugar coatingpot rotationspeed(r/m) 46 46 40 32 32
Main Power(kw)0.370.550.551.11.5
Electric wirepower(w)50050080010001000
Blower  power(w)404060250250
Productioncapacity(kg/times) 2 5 15 30-50 50-70
Machine  weight(kg)6570120240250
Overall size(mm)485*585*766485*585*810700*540*300925*900*15001100*1100*1600
External heating power(w) 500 500 600 1000*2 1000*2

Machine Features

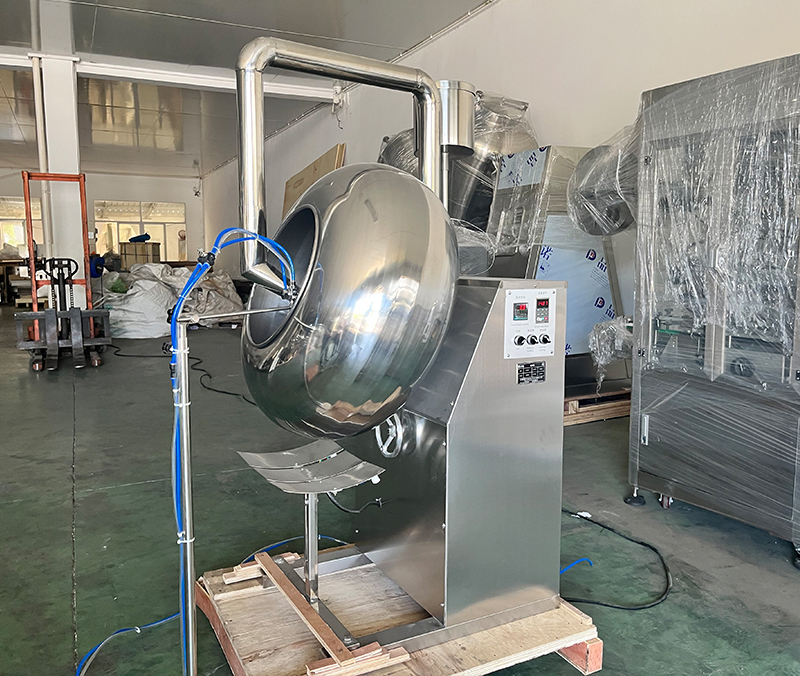

  • The machine is composed of the main parts: frame, worm gear housing, coating pan, heating device, blower, and electrical components. A motor drives the worm gear and worm via a V-belt, causing the coating pan to rotate. Under the action of centrifugal force, the material tumbles and rubs up and down inside the pan, achieving coating and mixing, pill forming, and polishing.
  • This machine is used for sugar-coating and film-coating tablets and capsules in the pharmaceutical and food industries, and can also be used for tumbling and heating beans and edible seeds.
  • The tilt angle of the sugar-coating pan is adjustable, and an electric stove or gas heater can be placed beneath the pan. The machine is equipped with an independent electrically heated blower; the air outlet duct can be extended into the pan for heating or for blowing cool air, and the heating temperature is adjustable.

Production Workflow Chart

Sample Display

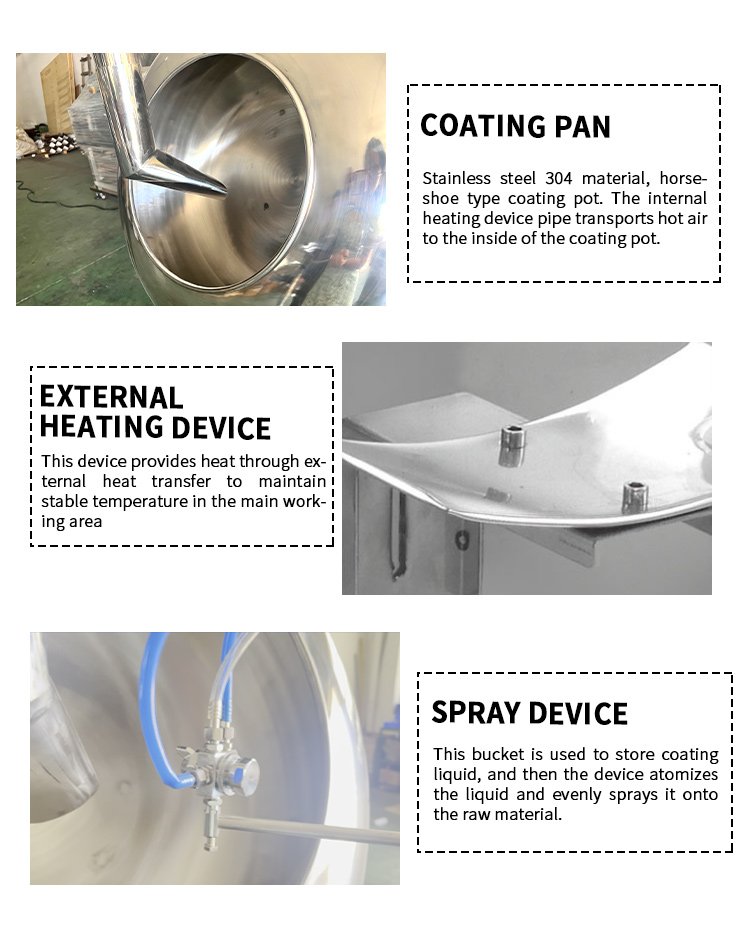

Detailed Display

Exhibition

Packaging And Shipping

Why Choose Us

Specialized Factory

Economical Pricing Options

On-Time Delivery

Perfect Customer Service

If you have any questions or need to develop customized equipment solutions, please contact our Email：info@hanyoo.net for the most thoughtful support!

Welcome To Our Coating Machine Production Line Factory!

Frequently Asked Questions

One purpose of the sugar coating is to protect the drug inside the tablet and act as barrier to external contaminants. It may also hide or mask the unsavoury taste of the drug that some patients may find unpalatable. Sugar coating insulates and masks the colour and texture of the tablet’s core.

BG Film Coating Machines. The Film Coating Machine can be used for coating various tablets, pills, and sweets with organic film, water-soluble film, and sugar film, etc., in pharmaceutical, food, and biological industries. It is noted for its high efficiency, low energy consumption, and space-saving qualities.

The core function of a coating machine involves applying a uniform coating to tablets under controlled conditions. This process typically includes loading the tablets into the coating drum, spraying them with a coating solution, drying the tablets to fix the coating, and unloading them for packaging.
