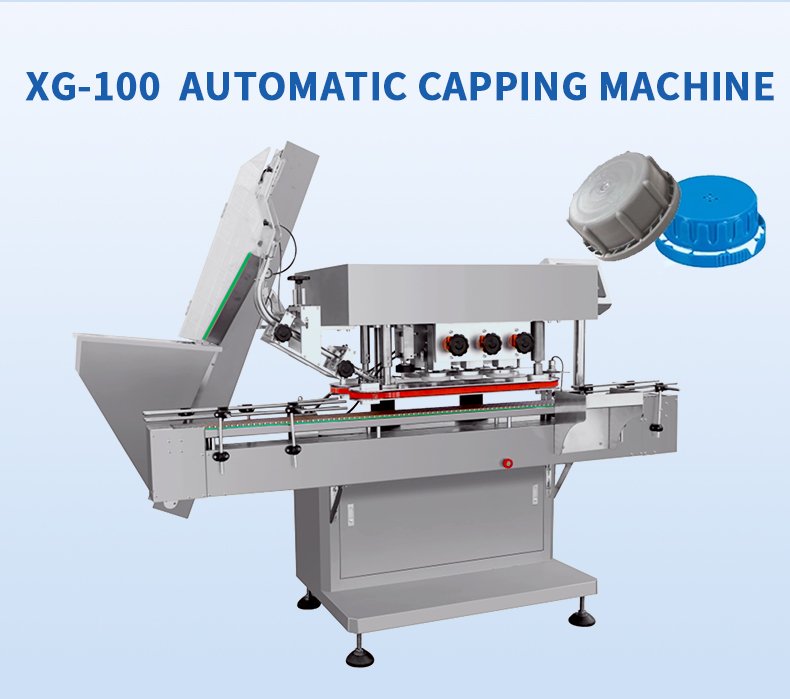

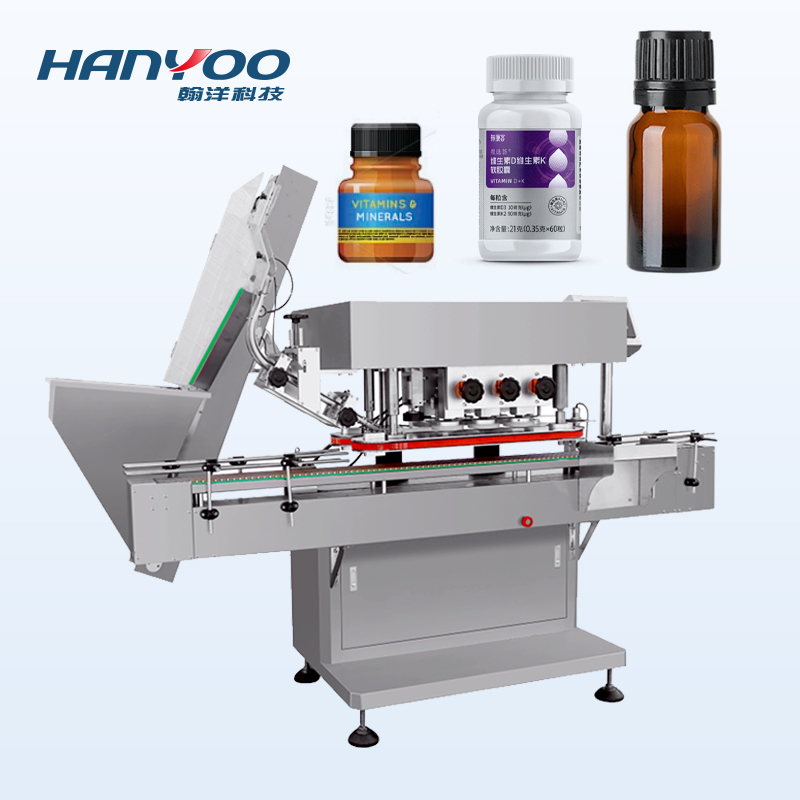

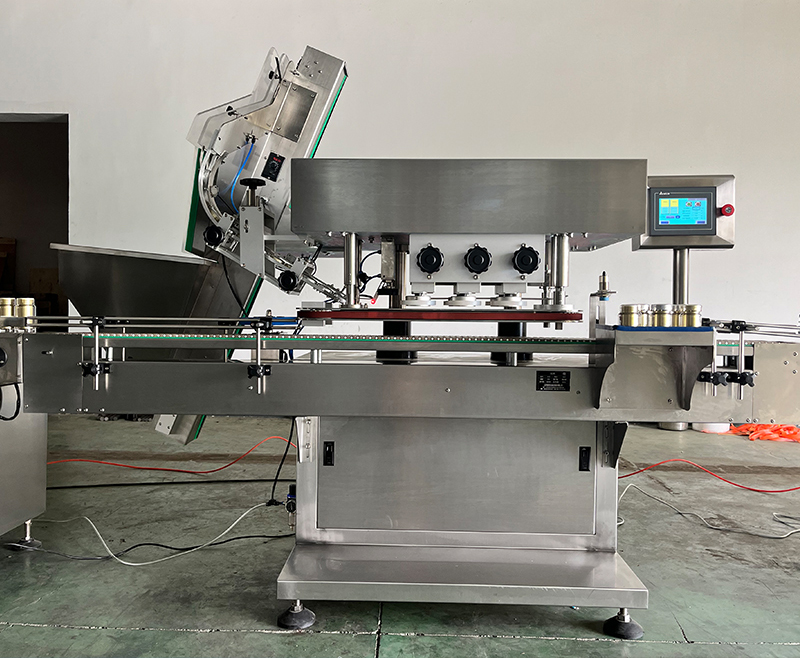

XG-100 Automatic Capping Machine

作者hanyoo
分享Printerest 分享LinkedIn 分享WhatsApp

The working process of the three wheel capping machine is divided into: automatic bottle feeding, automatic capping, capping, capping, screwing (or capping), and automatic bottle dispensing. The design and manufacturing principle of this machine is to provide the best, most accurate, and efficient screw cap work at the highest operating efficiency. The main transmission part of the machine is placed inside the box to avoid material contamination caused by wear and tear of the transmission mechanism. All parts in contact with the material are polished with high precision.

Play

Properties

ModelXG-100
AppliactionRound/Square Bottle 20-500ml;Φ≤70mm H≤150mm
Output Capacity50-120bottles/min
Powder1.8 KW
Voltage380V50HZ/220V 60HZ
Over Size(mm)1850*600*1560mm
Weight(kg)600KG

Machine Features

  • The three-wheel cap-twisting machine is an automated device that integrates mechanical, electrical, and pneumatic systems. It features a PLC-controlled electrical system with an HMI interface and variable-frequency speed control, using a Siemens (Germany) PLC and HMI.
  • The machine features a user-friendly HMI window, simple and easy-to-understand operation; parameter adjustments are saved in real time and never lost; the equipment runs stably and reliably; the structure is simple and well-designed, making maintenance and debugging convenient.
  • Equipped with an automatic safety protection device and photoelectric monitoring, the machine starts automatically when caps are present or fully loaded and stops automatically when caps are missing. It offers a high degree of automation, stable operation, and low noise. It’s easy to operate and maintain, and highly adaptable.

Production Workflow Chart

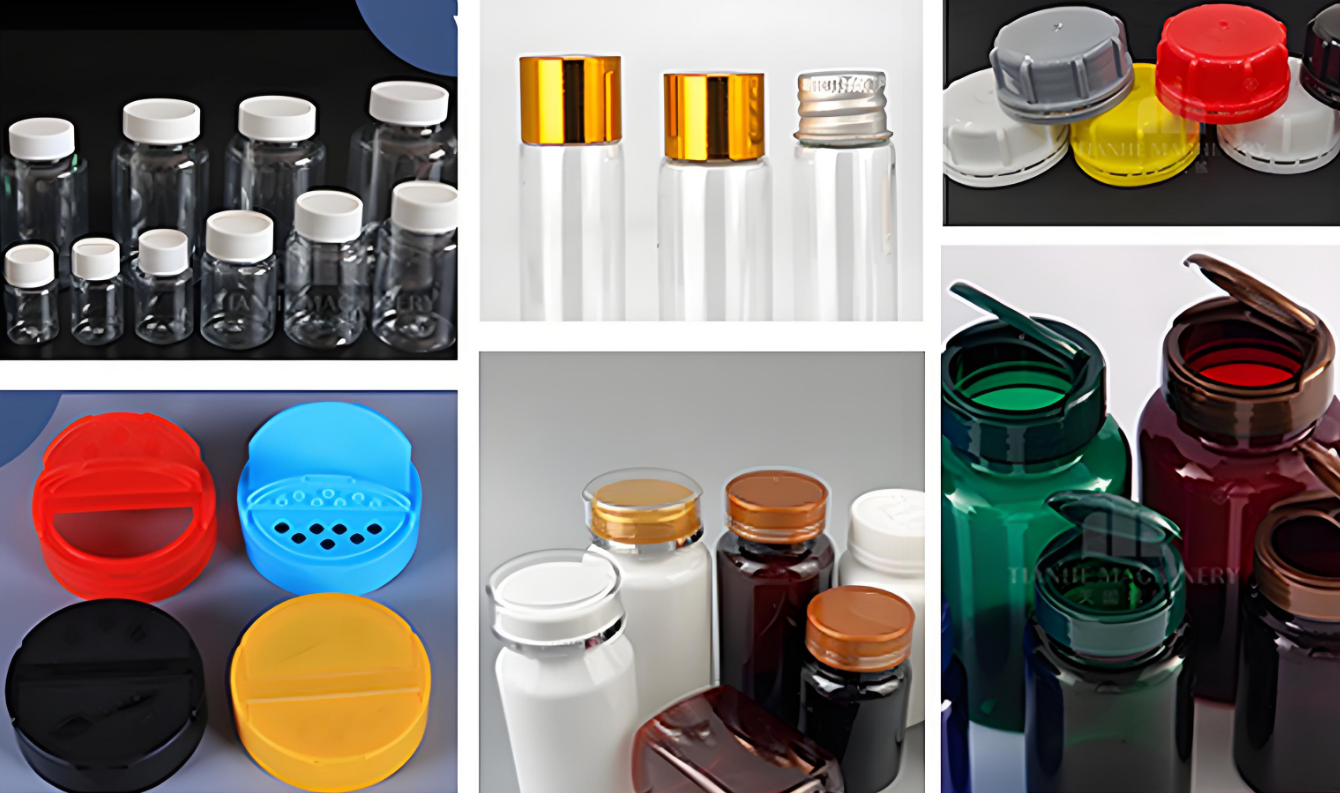

Sample Display

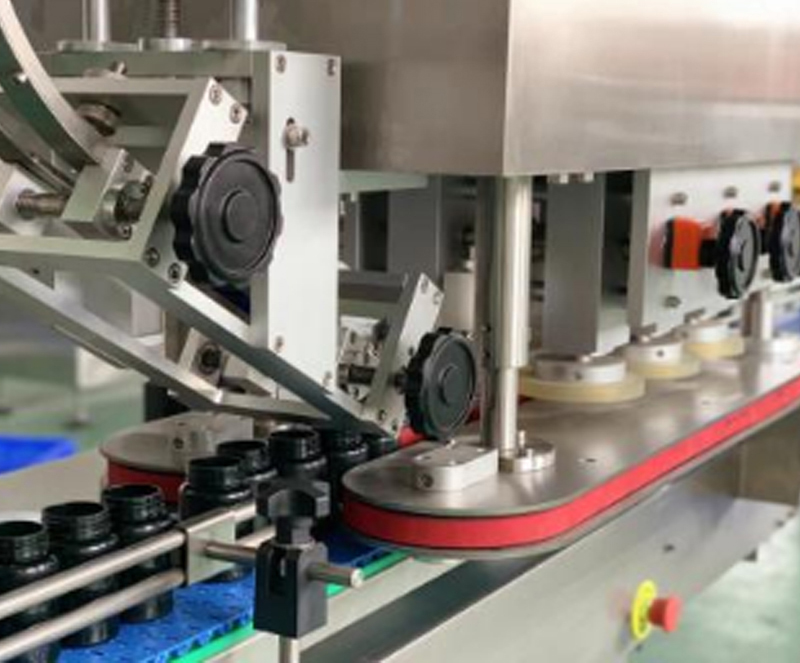

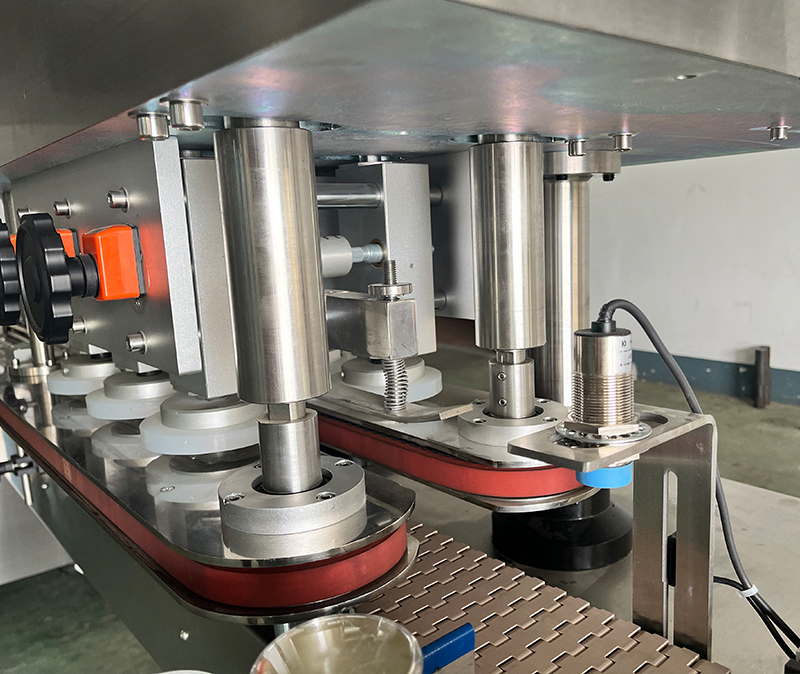

Detailed Display

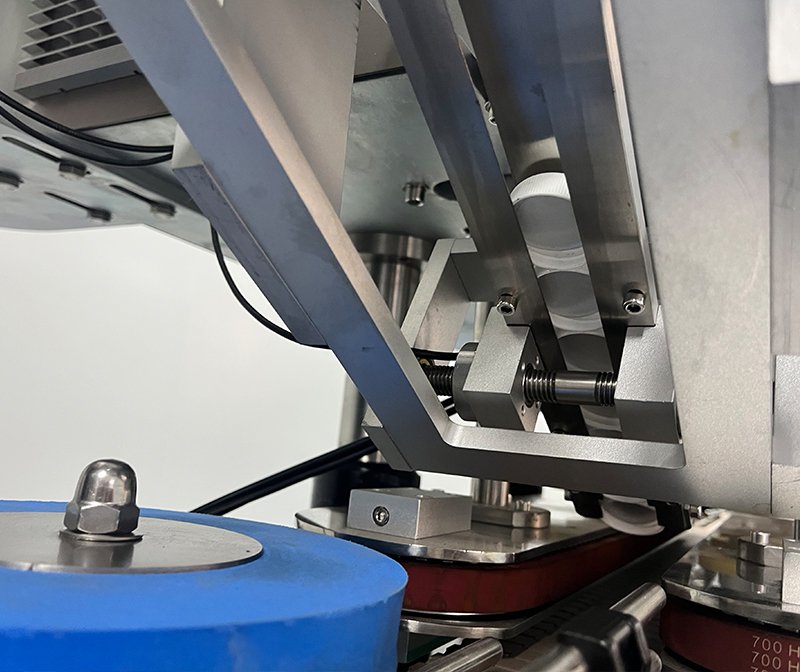

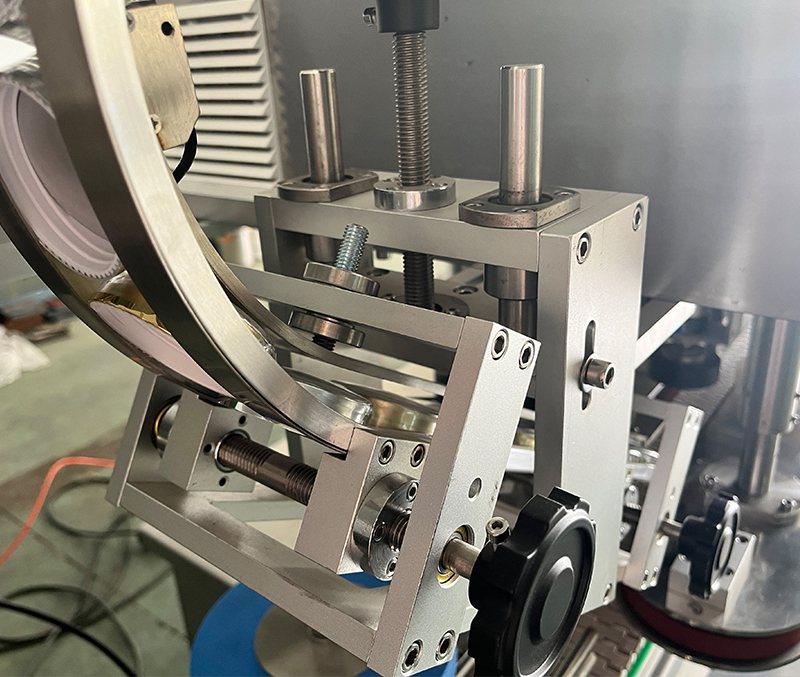

This machine uses a stepped cap-lifting mechanism with good stability. If a cap is not properly seated, it will automatically drop back into the cap storage hopper.

High degree of automation, smooth operation, and low noise.

The large-capacity lid hopper reduces the need for frequent lid replenishment and lessens the operators’ workload.

The entire body is made of high-quality 304 stainless steel with a fully sealed structure, meeting GMP requirements.

Exhibition

Packaging And Shipping

Why Choose Us

Specialized Factory

Economical Pricing Options

On-Time Delivery

Perfect Customer Service

If you have any questions or need to develop customized equipment solutions, please contact our Email：info@hanyoo.net for the most thoughtful support!

Welcome To Our Capsule/Tablet Counting Line Factory!

Frequently Asked Questions

A spindle capper is a packaging machine that automatically secures caps onto bottles or containers. It uses rotating spindles to apply consistent torque, ensuring a tight seal.

The two primary types are: In-line chuck capper– has one head in the middle that will screw the caps on the bottles. This is usually for smaller or slower production lines. Rotary chuck capper- has multiple heads to screw the caps onto bottles.

In general, the way capping machines work is relatively straight forward: The caps are placed, either automatically or manually, on top of a bottle, jar or container. The machine or operator then tightens and secures the caps. The sealed container is then transferred on for the next part of the packaging process.
